Building a DIY spray paint booth in your garage is a smart upgrade that most homeowners can handle over a weekend. Technique matters, and details that seem minor during the process determine long-term quality.
A functional spray booth doesn’t require industrial equipment. You need controlled airflow, adequate filtration, proper lighting, and a clean workspace. The goal is to pull overspray and fumes away from your breathing zone while preventing contaminants from settling on wet paint. Most setups cost between competitively priced and competitively priced depending on how much existing infrastructure you’re working with.
Here’s the complete process organized into manageable steps. Read through it entirely first, then work section by section.
Understanding the Basics
Mount an exhaust fan high on the wall opposite the garage door for heat removal. Hot air collects at the ceiling; the fan pulls it out while cooler air enters through the open door or a low intake vent. A 1,400 CFM fan exchanges air in a two-car garage every 3 to 4 minutes.
Most garages have only passive ventilation (air leaking around the door), which is inadequate for workspace use. A single wall-mounted exhaust fan creates deliberate airflow that removes heat, moisture, and fumes. The improvement is immediate and dramatic.
Garage Exhaust Fan High CFM
Essential for proper ventilation and fume removal in your spray booth setup
The airflow pattern matters more than raw CFM numbers. You want laminar flow across the work area, not turbulent swirls that recirculate overspray. Position your workpiece between the intake and exhaust so air sweeps past it in one smooth path. If you’re painting something large like cabinet doors or auto panels, center them in the airstream. Smaller projects can go anywhere in the booth zone as long as they’re not directly against a wall where air stagnates.
Steel wool packed into openings and secured with expanding foam stops rodents (foam alone gets chewed through). Copper mesh is even better. For larger gaps, 1/4-inch galvanized hardware cloth screwed in place creates a permanent, chew-proof barrier. This matters because pests entering through cracks will contaminate your paint surface with hair, dust, and droppings.
Step-by-Step Ventilation Setup
Understanding the specifics of your situation helps you choose the right approach. Your garage’s age, construction type, and local climate all influence what works best and what to avoid.
Start with a baseline assessment. Calculate your garage volume in cubic feet (length × width × ceiling height). A standard two-car garage (20 × 20 × 8) is 3,200 cubic feet. To exchange that air every 4 minutes, you need 800 CFM minimum. For spray painting, aim higher: 1,200 to 1,600 CFM pulls fumes out fast enough that you’re not breathing them even with a respirator malfunction. For more detailed guidance on this setup, check out our comprehensive garage paint booth setup guide.

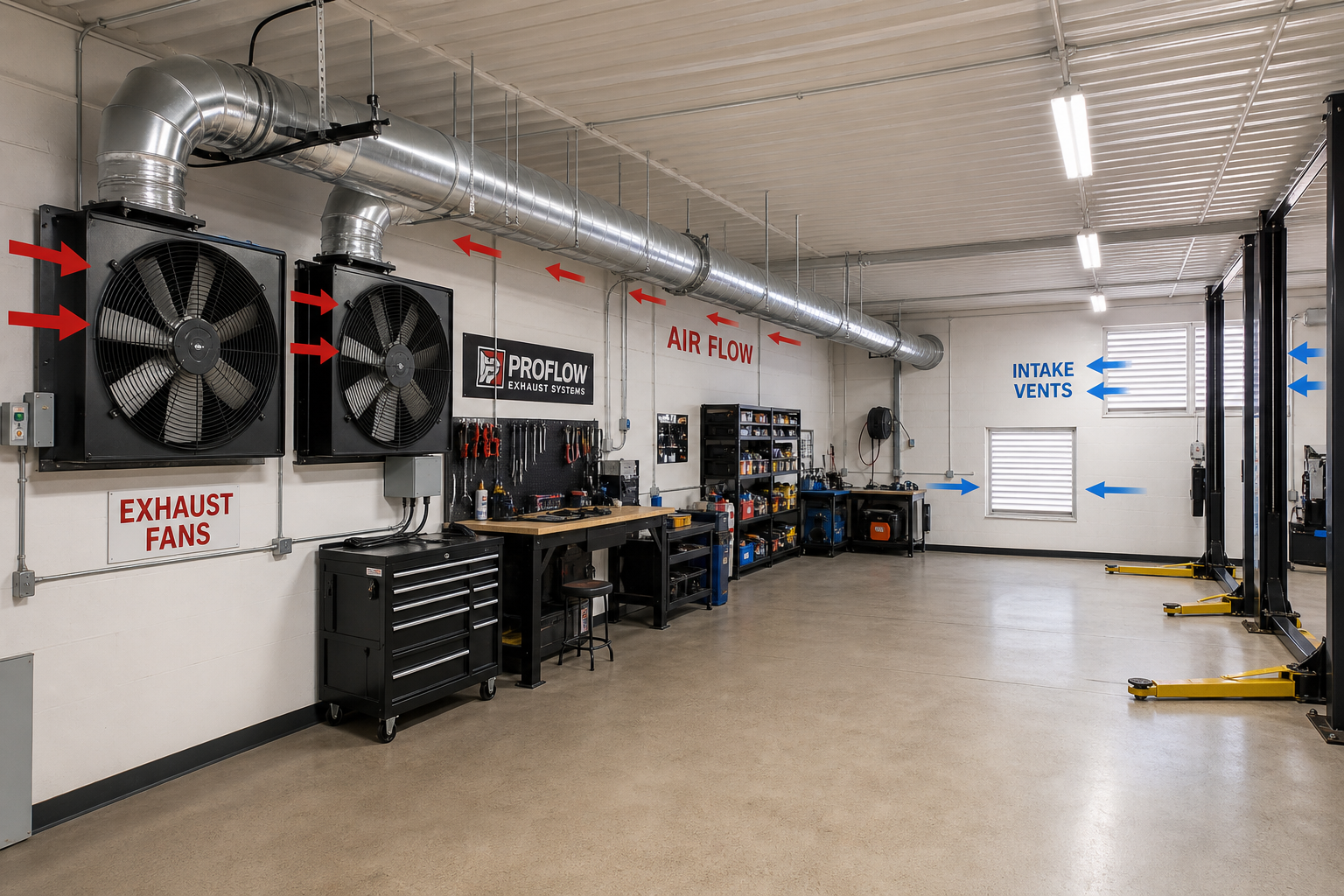

Mount the exhaust fan in the wall farthest from where fresh air enters. Most DIY setups use the main garage door as the intake, which means the exhaust fan goes on the back wall. Cut the opening at ceiling height where hot fume-laden air accumulates. A 16-inch square cutout fits most standard garage exhaust fans.
Before cutting, locate studs and check for wiring or plumbing inside the wall. A stud finder works for framing; a non-contact voltage tester catches live wires you don’t want to hit with a saw. If you encounter unexpected obstacles, move the fan location sideways by 16 inches rather than fighting what’s already in the wall.
Frame the opening with doubled studs if you’re cutting through existing framing. The fan housing mounts to this frame. Seal gaps between the fan and the wall with weatherproof caulk rated for exterior use. Air leaks around the fan reduce efficiency and let moisture into the wall cavity.
Wire the fan to a dedicated switch mounted near the entry door so you can turn it on before entering the booth space. Running 14-gauge wire from an existing circuit works for most fans drawing under 1.5 amps. Heavier fans need 12-gauge wire and possibly a dedicated breaker. When in doubt, hire an electrician for the wiring. An incorrectly sized circuit is a fire risk.
Install an intake filter over the garage door opening to catch dust before it enters the booth. A 20 × 20 furnace filter held in a simple wood frame does the job. Change it every few paint sessions or when airflow noticeably drops. Clogged filters choke your ventilation system and let more contaminants through.
Explosion-Proof Lighting Requirements
Getting lighting right requires matching your approach to actual conditions rather than following a generic formula. Climate, surface condition, and usage patterns all influence the best path forward.
Standard LED shop lights work fine for most hobbyist spray booths. The explosion-proof rating matters in commercial settings where volatile fumes concentrate continuously. In a well-ventilated home garage booth used occasionally, standard fixtures pose minimal risk as long as the ventilation system runs during and after spraying.
Mount lights outside the direct overspray zone. Ceiling-mounted fixtures 6 feet from the workpiece prevent overspray buildup on the lenses. Overspray on lights creates shadows and makes color matching harder. If overspray does accumulate, wipe fixtures down with a damp cloth after each session.
Use daylight-balanced bulbs (5000K to 6500K) for accurate color. Warm white bulbs shift colors toward yellow and make metallic paints look wrong. Cheap LEDs have poor color rendering that makes grays look greenish. Spend extra for high-CRI bulbs and you’ll see the paint’s true color.
Light the booth from multiple angles to eliminate shadows. Two overhead fixtures plus a side-mounted light gives even coverage on complex shapes. For automotive work, add a low-angle light near the floor to catch sags and runs that overhead lighting misses.
Start with a small test area if you’re uncertain. A 4 by 4-foot section in an inconspicuous spot lets you evaluate adhesion, appearance, and workability without committing to the full project. Troubleshooting a small test area is far easier than redoing everything.
Wear appropriate protection throughout: safety glasses, gloves, respirator when working with chemicals or dust. Ventilate when using adhesives, paints, or solvents. These aren’t optional precautions. Organic vapor cartridges filter paint fumes; particulate filters catch overspray. Both matter. Replace cartridges when you smell solvents through the mask or when breathing resistance increases noticeably.
Building the Booth Enclosure

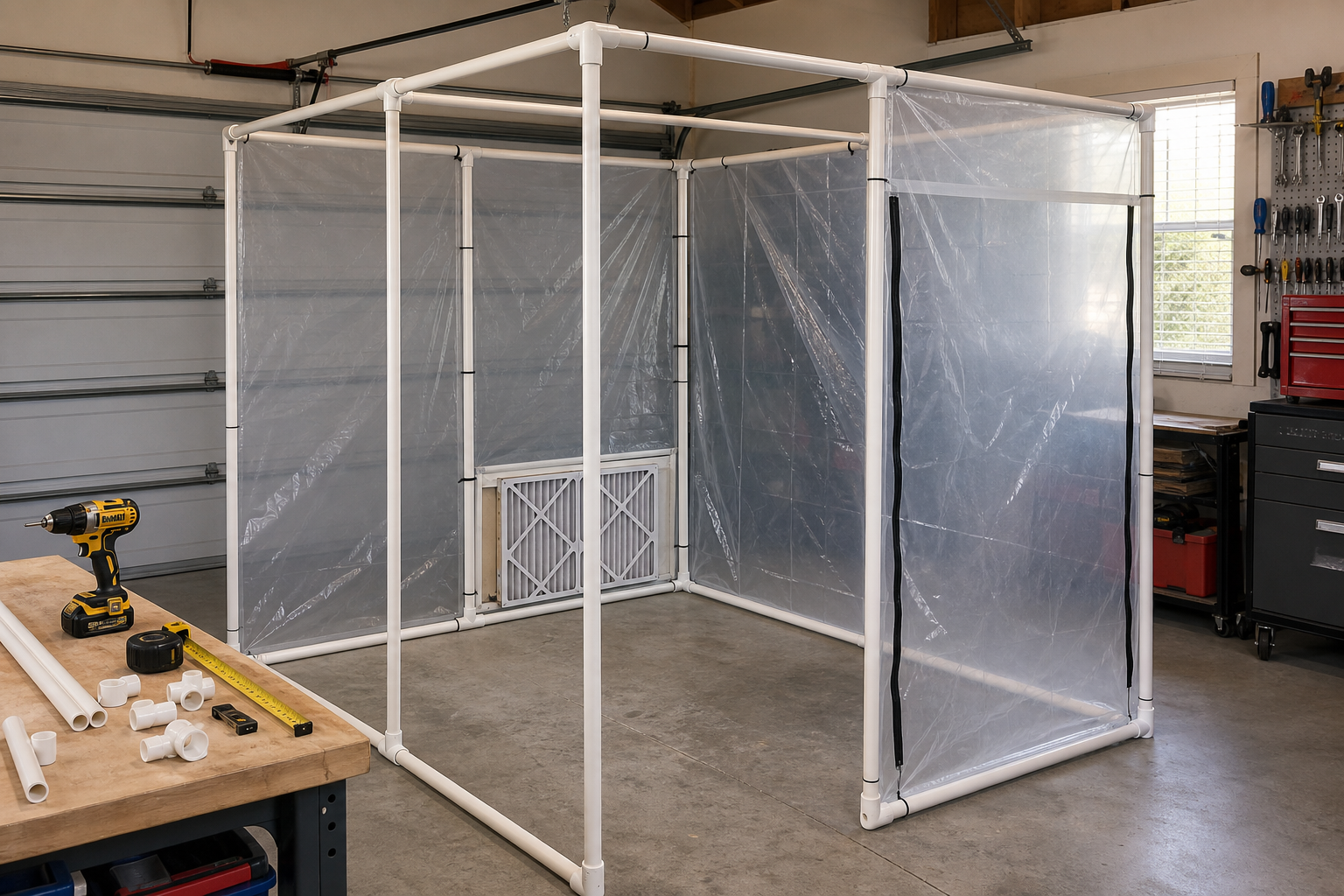

A spray booth needs walls to direct airflow and contain overspray. You don’t need permanent construction. Heavy-duty plastic sheeting (6-mil poly or thicker) stapled to a simple 2×4 frame creates a functional booth. Build three walls and a ceiling, leaving one end open for access and the other for the exhaust fan.
Cut 2×4s to fit your space and assemble with 3-inch deck screws. A 10 × 10 × 8 booth fits most garage projects and still leaves room to walk around the outside. This size works well if you’re also considering creative workspace ideas where spray finishing will be just one of many activities. Anchor the frame to the garage floor with concrete screws or heavy weights. An unstable frame vibrates when the exhaust fan runs, which telegraphs to your workpiece.
Drape plastic over the frame and staple every 6 inches. Pull it taut to prevent sagging that disrupts airflow. Overlap seams by 12 inches and seal with duct tape. Air leaks waste fan capacity and let overspray escape into the rest of the garage.
The floor matters more than most people expect. Concrete dust kicked up during painting contaminates the finish. Vacuum thoroughly, then wet-mop the floor before draping it with clean poly sheeting or taping down rosin paper. Replace floor covering after every few sessions or whenever dust accumulates.
Some builders prefer rigid wall panels (melamine or painted plywood) over plastic sheeting. Rigid walls last longer and clean easier, but they cost more and take up permanent garage space. Evaluate based on how often you’ll use the booth. If you’re painting once a month or more, rigid walls pay off. For occasional projects, plastic sheeting is plenty.
Filtration and Overspray Control
Exhaust fans pull overspray toward the back wall. Without filtration, that overspray coats the fan blades and clogs the motor. A simple exhaust filter prevents this.

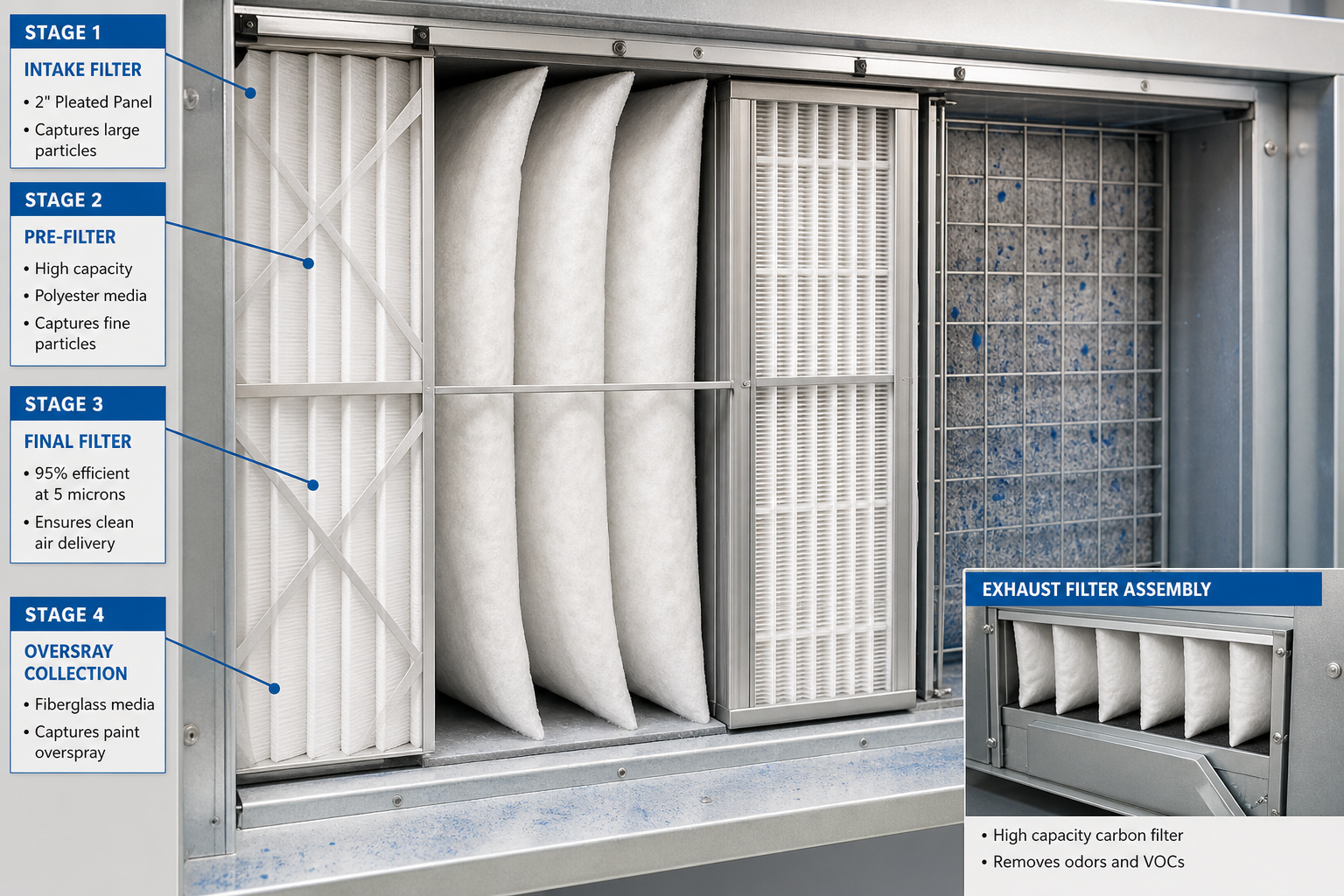

Mount a furnace filter in a wood frame directly in front of the exhaust fan. A 20 × 20 filter fits most garage exhaust fans. Use MERV 8 or higher to catch paint particles without choking airflow. MERV 13 filters catch more but reduce CFM noticeably. Balance filtration against airflow based on what you’re painting. Light overspray from aerosol cans tolerates higher MERV ratings. Heavy HVLP spraying needs more airflow, so stick with MERV 8.
MERV 8 Air Filters 20×20
Perfect balance of filtration and airflow for spray booth applications
Replace exhaust filters when they look visibly loaded with paint or when the fan sounds strained. A clogged filter cuts effective CFM in half and makes the motor work harder. Cheap filters are a maintenance item, not a long-term investment. Stock up on a box of ten and swap them freely.
Intake filtration matters just as much. The air entering your booth carries whatever dust is floating in your garage. A clean intake filter plus a vacuumed floor eliminates most contaminants. For critical work (show-car finishes, high-gloss clear coats), add a second-stage intake filter and mist the floor lightly with water to settle any remaining dust.
Additional Considerations
Pest Control and Sealing
The garage door bottom seal is the most common pest entry point. A 1/4-inch gap admits mice, insects, and spiders. Inspect the entire seal length for cracks, compressed areas, or hardened rubber that no longer contacts the ground fully.
Other entries: gaps around pipes and wires, sill plate-to-foundation spaces, unscreened vents, and deteriorated weatherstripping on side doors. Physical exclusion (sealing gaps) beats traps because it prevents entry entirely.
Seal penetrations where wiring or plumbing enters the garage. Copper mesh stuffed into the gap and covered with expanding foam creates a rodent-proof barrier. Don’t use foam alone; rodents chew through it easily. The copper mesh stops them.
Check the threshold under entry doors. A 1/2-inch gap under a side door is enough for a mouse. Install a door sweep or adjust the threshold height until the gap disappears.
