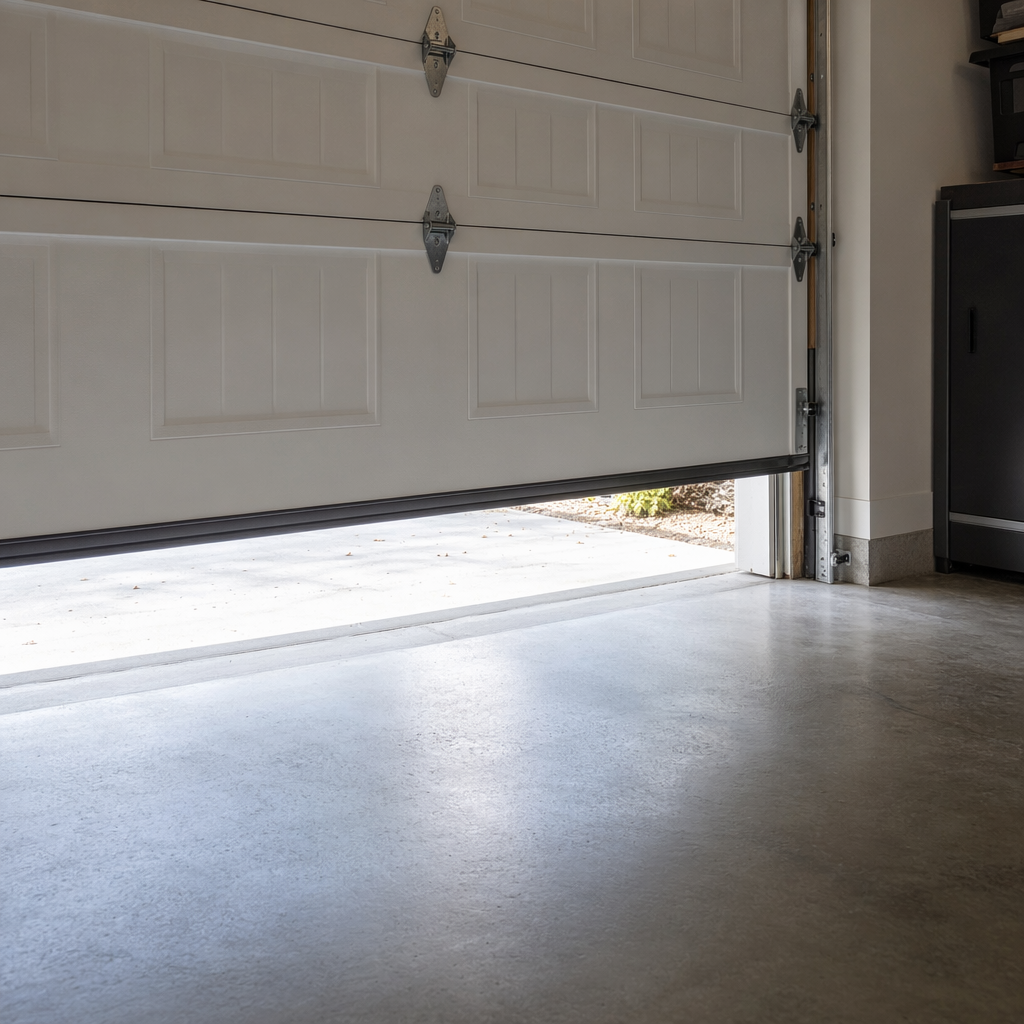

Your garage door closes but leaves a three-inch gap at the bottom. Or maybe it reverses halfway down for no apparent reason. These frustrating problems usually come down to one thing: your travel limits need adjustment. The good news is you can fix this yourself in about 10 minutes with just a screwdriver or your fingers.
Travel limits tell your garage door opener exactly where to stop when opening and closing. When they’re off, your door won’t seal properly against the weather, or it might not open all the way. Let’s get yours dialed in correctly.
Why Your Travel Limits Need Adjustment
Your garage door opener doesn’t magically know where the floor is or when the door reaches the fully open position. It relies on limit switches or electronic sensors that you set manually. Over time, these settings can drift out of alignment.
Temperature changes cause the metal rails and door panels to expand and contract. Your torsion spring loses tension gradually as it ages, which means the door hangs slightly lower than it did when you first installed the opener. Cable stretch, worn rollers, and settling of your home’s foundation all contribute to misalignment.
You’ll know it’s time to adjust when your door reverses before touching the ground, stops a few inches short of fully open, or crashes into the ground hard enough to bounce back up. Some openers will flash error codes or beep when the limits are significantly off.
Finding the Limit Adjustment Controls on Your Opener
The location of your limit controls depends on your opener’s brand and age. Most modern openers have clearly labeled adjustment controls, but older models can be trickier to figure out.
Chamberlain and LiftMaster Openers
These sister brands dominate the market, and they’ve used several different systems over the years. Most Chamberlain and LiftMaster belt drive openers from the last 15 years have white plastic adjustment buttons on the side panel. You’ll see “UP” and “DOWN” labels with small arrows pointing to increase or decrease buttons.
The MyQ-enabled smart openers like the LiftMaster 8500W have the same button layout but add an LCD screen that shows the current limit positions. Older models from the 1990s and early 2000s typically have limit screws on the side of the motor housing instead, usually with white plastic knobs you can turn by hand.
Genie Openers
Genie takes a different approach. Their Intellicode models have limit adjustment screws on the motor unit itself, located under the light cover. You’ll need to remove one or two screws to access the control panel. Look for two white dials labeled “UP LIMIT” and “DOWN LIMIT.”
The newer Genie Aladdin Connect openers moved these controls to a side panel that’s easier to access. They’re still manual turn dials, not push buttons like Chamberlain uses.
Craftsman Openers
Craftsman openers are actually manufactured by Chamberlain, so they follow the same design. Newer models have push-button controls on the side panel. Older Craftsman openers from before 2010 usually have limit screws with adjustment knobs on the back or side of the motor housing.
Ryobi and Other Chain Drive Models
Many budget-friendly chain drive openers use a simple limit screw system. You’ll find two screws on the side of the power unit, often color-coded (one red, one green) or labeled with directional arrows. These require a flathead screwdriver to adjust.

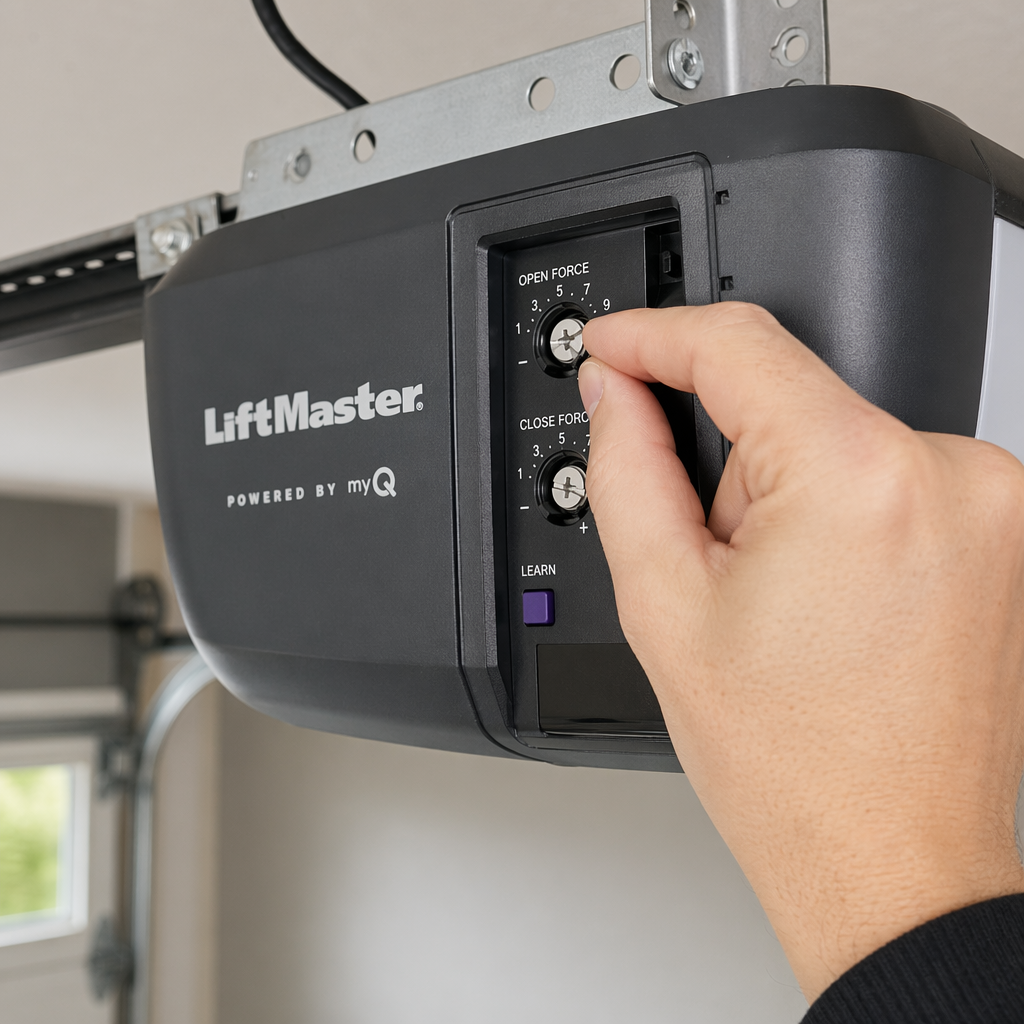

Step-by-Step Down Limit Adjustment
Start with the down limit because it’s more critical for security and weather sealing. A door that doesn’t close fully is worse than one that doesn’t open all the way.
First, open your door completely using the wall button or remote. This gives you a clear view of what happens during the closing cycle. Make sure nothing is blocking the door’s path and that your safety sensors are aligned (you should see solid lights on both sensor eyes).
Press the wall button to close the door and watch what happens. Does it stop before touching the ground? Does it hit the ground and reverse? Or does it close properly but not seal tightly? The answer tells you which direction to adjust.
For push-button systems, each press moves the limit about one inch. If your door stops two inches above the ground, press the down limit decrease button twice. Then test by opening and closing the door completely. Repeat this process until the door makes gentle contact with the ground without reversing.
For screw-type adjusters, one full turn typically equals about two inches of travel. Turn the down limit screw clockwise to make the door close further, counterclockwise to make it stop sooner. Make small adjustments of a quarter turn at a time.
The door should press firmly against the weather seal at the bottom without bouncing back up. You want to see the rubber seal compress slightly but not flatten completely. Too much pressure triggers the safety reverse feature.
Step-by-Step Up Limit Adjustment
Adjusting the up limit follows the same basic process but requires different observation points. Close your door fully and activate the opener to open it.
Watch the door as it travels upward. It should stop when the door is parallel to the ceiling, with the bottom panel at least seven feet above the floor for standard doors. This clearance lets vehicles pass underneath safely.
If your door stops short and leaves only six feet of clearance, you need to increase the up limit. For button systems, press the up limit increase button. For screw adjusters, turn the up limit screw counterclockwise.
Don’t set the up limit too high. If the door tries to travel beyond its physical stopping point, it will slam into the upper roller brackets or jam the mechanism. You’ll hear a loud bang and the motor will strain. This can damage your opener’s gears and strip the drive mechanism.
The correct up limit position has the door stopping smoothly without hitting the end stops hard. There should be minimal coasting after the motor stops running.
Common Problems and How to Fix Them
Door Closes Then Immediately Reopens
This is the most common limit-related problem. Your down limit is set too far, causing the door to hit the ground with too much force. The opener interprets this as an obstruction and reverses for safety.
Decrease your down limit by small increments until the door stops without bouncing. You can also check your down force setting, which is a separate adjustment on most openers. The down force controls how much pressure the door can apply before reversing.
Door Stops Several Inches Above the Ground
This one’s simpler to fix. Your down limit needs to be increased. Keep adjusting until the door makes contact with the ground. Just don’t go so far that you create the bouncing problem mentioned above.
Check your torsion spring tension while you’re at it. A spring that’s lost tension will cause the door to hang lower than normal, requiring you to increase the down limit more than you should need to. A properly balanced door should stay in place when you stop it manually halfway up.
Door Opens Only Partway
Your up limit is set too low. Increase it gradually until the door opens to the full vertical position. This problem often develops slowly as your torsion spring loses tension over months or years.
Be careful not to overcorrect. Set the limit so the door stops just before it would contact the door stop bolts mounted on your horizontal track.
Limits Reset Themselves Randomly
Some smart openers have a “learn” function that automatically resets limits if it detects certain conditions. The LiftMaster Security+ 2.0 system does this if it senses binding or obstruction during several consecutive cycles.
This feature is supposed to be helpful but can cause problems if your door has minor binding issues. You can disable auto-limit adjustment in the settings menu on most smart openers. Check your manual for the specific procedure.
When Limit Adjustments Won’t Solve the Problem
Sometimes you’ll adjust and readjust your limits but still can’t get the door to close properly. This usually means you have a different problem masquerading as a limit issue.
Worn or damaged rollers cause the door to drag and bind, triggering the safety reverse. Replace any rollers with flat spots or visible cracks. Nylon rollers typically last 10,000 to 15,000 cycles while steel rollers can go 30,000 cycles or more.
Misaligned safety sensors will prevent the door from closing no matter how you adjust the limits. Both sensor lights should be solid, not blinking. The sensors need to be mounted at the same height (usually four to six inches above the floor) and pointed directly at each other.
A weak or broken torsion spring changes your door’s weight balance. The opener has to work harder to close the door, and it may not have enough force to seal the bottom weather stripping. You’ll need to replace the spring or add tension to the existing spring. Don’t attempt this yourself unless you have proper training. Torsion springs are under extreme tension and can cause serious injury.
Track problems like bends, dents, or loose mounting brackets will cause binding at specific points in the door’s travel. Run the door manually with the opener disconnected and feel for any rough spots or sticking points.
Frequently Asked Questions
How often should I adjust my garage door opener limits?
Most garage doors only need limit adjustments once every few years, if at all. However, you should check them seasonally if you live in an area with extreme temperature swings. Adjust them any time you replace the torsion spring, change the door height, or notice the door not sealing properly.
Can adjusting the limits damage my garage door opener?
You can’t damage the opener by adjusting the limit switches themselves, but setting the limits incorrectly can cause problems. Setting the down limit too far makes the door slam into the ground repeatedly, which can damage the bottom section and wear out the motor. Setting the up limit too high causes the door to crash into the stops, potentially stripping the drive gear.
Why does my door close perfectly in the morning but not at night?
Temperature changes cause metal components to expand and contract. A door that’s properly adjusted at 70 degrees might hang a half-inch lower at 30 degrees. Some people set their limits for the coldest temperatures they typically see, accepting that the door might close with a bit more force during warmer weather. Others adjust seasonally for optimal performance year-round.
Will I need to reprogram my remotes after adjusting limits?
No, limit adjustments don’t affect your remote programming or keypad codes. The only exception is if you completely reset your opener to factory defaults, which some models require for certain advanced adjustments. Normal limit changes using the adjustment buttons or screws won’t erase any programming.
