How to Install Garage Radiant Barrier

Your garage probably turns into an oven every summer, and if you’ve been researching ways to combat that heat, you’ve likely come across radiant barriers. Unlike traditional insulation that slows conductive heat transfer, radiant barriers work by reflecting radiant heat before it even enters your space. This makes them particularly effective in garages where attic spaces and walls absorb massive amounts of heat from the sun.

Installing a radiant barrier in your garage isn’t complicated, but doing it right requires understanding how these materials work and where to place them for maximum effect. This guide walks you through everything you need to know, from choosing the right type of barrier to actual installation techniques that deliver real results.

Understanding How Radiant Barriers Actually Work

Radiant barriers don’t insulate in the traditional sense. Instead, they reflect up to 97% of radiant heat away from the surface. When the sun beats down on your garage roof, the shingles and roof deck heat up and radiate that energy downward into your attic space and eventually into the garage below.

A radiant barrier foil installed in the right location intercepts this radiant energy and bounces it back, preventing it from heating up the air and surfaces in your garage. The key is that the reflective surface needs to face an air space. Without at least a 3/4-inch air gap, the barrier can’t do its job effectively.

Most radiant barriers consist of a thin layer of aluminum foil bonded to one or both sides of a substrate material like kraft paper, plastic film, or cardboard. Some products include additional features like perforations for moisture control or reinforced scrim for durability.

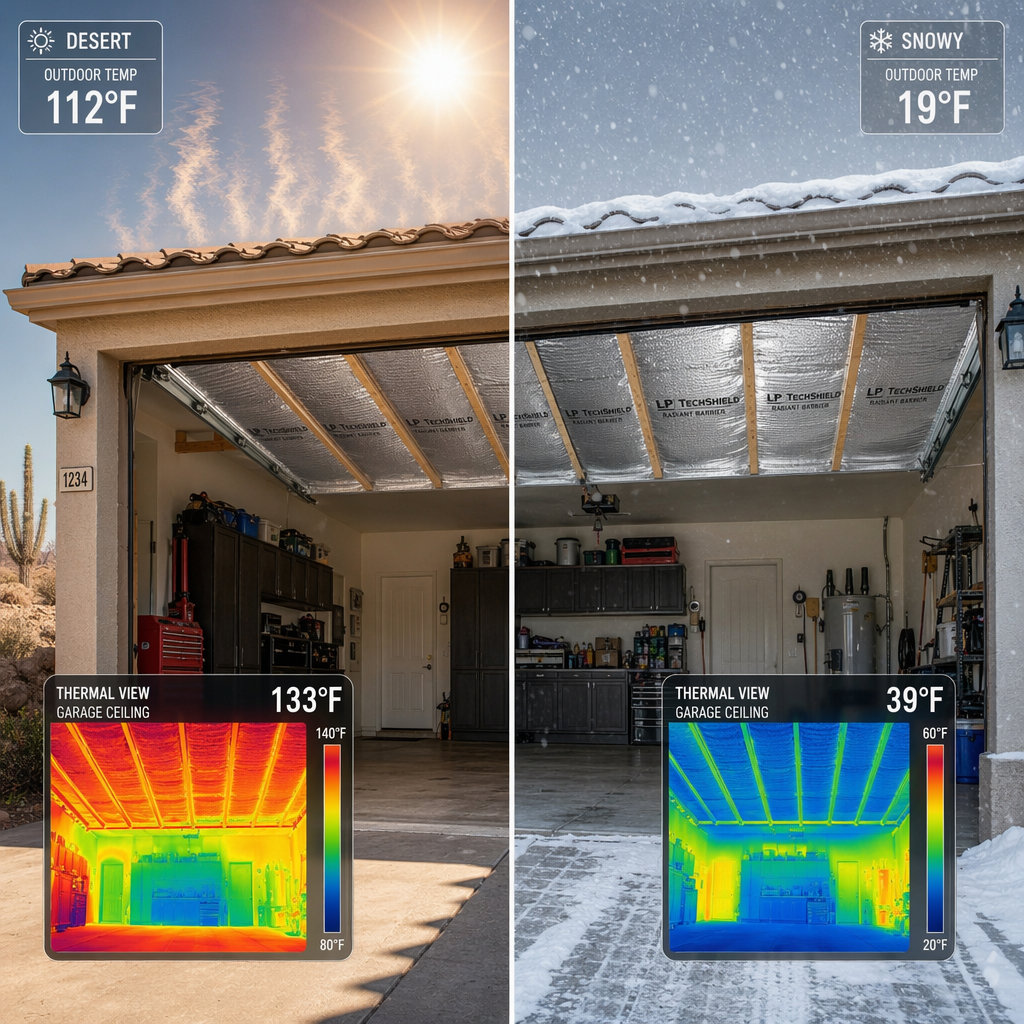

Climate Considerations and Expected Performance

Radiant barriers perform best in hot, sunny climates where cooling costs dominate. If you live in the southern United States, you’ll see the most dramatic results. The Department of Energy estimates that radiant barriers can reduce cooling costs by 5-10% in hot climates when installed in attics.

In cooler climates, the benefits diminish because radiant barriers primarily address cooling loads, not heating efficiency. You’ll still get some benefit during summer months, but don’t expect the same performance you’d see in Arizona or Texas.

For garages specifically, many people report interior temperature reductions of 10-20 degrees Fahrenheit after installing radiant barriers in the attic space above. This isn’t a precise science since results vary based on roof color, ventilation, garage orientation, and whether you’re conditioning the space. Still, even an unconditioned garage becomes more comfortable for workshop activities.

Types of Radiant Barriers for Garage Applications

You’ll find several types of radiant barrier products suitable for garage installations. Foil-faced bubble wrap products combine a thin layer of insulation with the reflective surface, offering both radiant heat reflection and a small R-value boost. These work well on garage doors and walls where space is limited.

Pure foil products without insulation backing provide the highest reflectivity and work best in attic spaces where you’re solely focused on reflecting radiant heat. These typically come in large rolls that you’ll either staple to rafters or drape over existing insulation.

Perforated versions allow water vapor to pass through, which matters in humid climates or when installing directly against roof decking. Non-perforated barriers create a vapor barrier, which can be beneficial in some applications but problematic in others. Check your local building codes before choosing.

Installing Radiant Barrier in Garage Attic Spaces

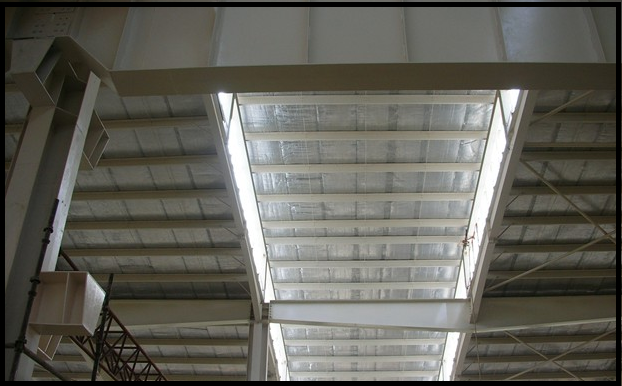

The most effective location for radiant barrier installation is in the attic space above your garage. You have two main approaches: stapling to the underside of rafters or draping over existing insulation on the attic floor.

Rafter installation provides superior performance because it stops radiant heat at the highest point before it can warm the attic air. Measure the distance from ridge to eave, cut your radiant barrier to length with a few inches extra, and staple it to the underside of the rafters. Leave the bottom open at the eaves to allow air circulation. The reflective side should face down toward the attic floor, with at least a 3/4-inch gap between the barrier and the roof decking.

You’ll need a staple gun, utility knife, measuring tape, and appropriate safety equipment including gloves and eye protection. Work on cooler days if possible because attics turn brutal in summer heat. Wear long sleeves despite the temperature since the foil edges can be surprisingly sharp.

For attic floor installation, simply roll the radiant barrier out over existing insulation with the reflective side facing up. This method is faster and easier but slightly less effective since the attic air has already heated up somewhat. Overlap seams by at least two inches and tape them with reflective foil tape to maintain continuity.

Avoid covering recessed lights or heat-producing equipment unless they’re IC-rated for insulation contact. Trapped heat can create fire hazards.

Wall Installation Methods for Additional Heat Control

Adding radiant barrier to garage walls provides another layer of heat control, particularly on walls that receive direct sun exposure. This application makes sense if you’re already opening up walls for other projects or if you have exposed stud bays.

Install the barrier against the exterior sheathing with the reflective side facing inward toward the garage interior. Staple it to the studs, making sure to maintain that critical air gap between the barrier and any drywall or paneling you install later. You can use furring strips to create the necessary space.

Bubble wrap radiant barrier products work particularly well in wall applications because the bubble layer automatically creates the required air space. These products are thicker and easier to handle than pure foil barriers when working vertically.

For garage doors, cut the radiant barrier to fit between the door panel ribs and secure it with adhesive or double-sided tape designed for metal surfaces. This application can significantly reduce heat transfer through the large surface area of your garage door.

Combining Radiant Barriers with Traditional Insulation

Radiant barriers and traditional insulation address different heat transfer mechanisms, so combining them delivers better results than either alone. Traditional fiberglass or cellulose insulation slows conductive and convective heat transfer, while radiant barriers handle radiant heat.

In attic spaces, you can install radiant barrier on the rafters and maintain existing insulation on the attic floor. This combo setup stops radiant heat high in the attic while the floor insulation prevents any remaining heat from conducting down into your garage.

The order matters when combining materials. Always put the radiant barrier on the side facing the heat source with an air gap, then add traditional insulation. For example, in an attic, the radiant barrier goes under the rafters (closest to the hot roof), and the traditional insulation sits on the attic floor below.

Don’t compress traditional insulation trying to fit radiant barrier into tight spaces. Compressed insulation loses R-value, and you’ll defeat the purpose of having both systems. If space is tight, choose the solution that addresses your primary problem. In hot climates with serious cooling loads, prioritize the radiant barrier. In mixed climates with both heating and cooling needs, traditional insulation might take precedence.

Common Installation Mistakes to Avoid

The biggest mistake is eliminating the air gap. Radiant barriers pressed directly against another surface conduct heat rather than reflecting it. Always maintain that 3/4-inch minimum gap on the reflective side.

Another common error involves installing the barrier backwards. The shiny, reflective side must face the air space and the direction from which radiant heat approaches. In attic applications, this typically means reflective side down. On walls, reflective side in toward the conditioned space.

Some people cover 100% of their attic, including soffit vents and ridge vents, choking off necessary airflow. Attic ventilation remains critical even with radiant barriers installed. In fact, proper ventilation helps carry away the heat that gets reflected back toward the roof deck.

Don’t expect radiant barriers to solve moisture problems. While they reflect heat, they don’t address condensation issues caused by humidity. In fact, non-perforated barriers can trap moisture if installed incorrectly. Use perforated products in humid climates and ensure adequate ventilation.

Measuring Results and Setting Realistic Expectations

Track your garage temperature before and after installation to measure real-world performance. Use a simple thermometer or temperature logger to record readings at the same time each day, particularly during peak afternoon heat.

You’ll notice the biggest difference on the hottest, sunniest days when radiant heat is at its peak. Cloudy days won’t show much change since radiant barriers specifically target solar radiation. This doesn’t mean the barrier isn’t working, just that it addresses a specific type of heat transfer.

Your results depend heavily on factors beyond the barrier itself. A dark roof absorbs far more heat than a light-colored one. Poor ventilation traps hot air regardless of what’s reflecting it. Uninsulated walls and leaky doors allow heat infiltration that no amount of radiant barrier can stop.

Think of radiant barriers as one component of a complete thermal control strategy. They excel at what they do, but they’re not magic. Combine them with adequate traditional insulation, proper ventilation, air sealing, and you’ll create a garage environment that stays considerably cooler in summer heat.

Frequently Asked Questions

Can I install radiant barrier directly to my roof decking?

You can install radiant barrier directly to the underside of roof decking, but only if you use a perforated product and your attic has adequate ventilation. Non-perforated barriers installed this way can trap moisture between the barrier and the decking, potentially leading to rot and mold. Many building codes prohibit non-perforated barriers in direct contact with roof decking for this reason. The safer approach is stapling to the underside of rafters, which automatically creates the necessary air gap and ventilation path.

Will radiant barrier help with heating costs in winter?

Radiant barriers provide minimal benefit for heating costs because they primarily address radiant heat from the sun, not the conductive heat loss that dominates in winter. During winter, you’re trying to keep heat inside your garage, and that heat transfers mainly through conduction and air leakage. Traditional insulation with a high R-value performs far better for this purpose. Some radiant barriers claim dual-season benefits by reflecting heat back into the garage during winter, but the effect is small compared to proper insulation.

How long does radiant barrier last once installed?

Quality radiant barrier products last 25-30 years or more when properly installed in attic spaces protected from physical damage and UV exposure. The aluminum facing doesn’t degrade significantly over time. However, products installed in harsher environments like on garage doors or exposed walls may show wear sooner due to handling, impacts, and direct sunlight. The key to longevity is protecting the barrier from tears, keeping it dry, and maintaining the air gap needed for proper function.

Do I need professional installation or can I DIY radiant barrier?

Radiant barrier installation is definitely DIY-friendly for anyone comfortable working in attics and using basic tools. The materials are lightweight, the techniques are simple, and you don’t need specialized equipment beyond a staple gun and utility knife. The main challenges are working in hot attic spaces and handling large, somewhat unwieldy rolls of material. Take your time, work during cooler parts of the day, and focus on maintaining that critical air gap. Professional installation makes sense if you’re uncomfortable in attics, have a complex roof structure, or are combining the radiant barrier install with other major insulation work.
