How to Mount a Basketball Hoop on Your Garage: Step-by-Step

The sound of the perfect swish echoing down your driveway…nothing beats it. Whether it’s a quick game with the kids or solo practice after work, adding a basketball hoop to your garage brings fun and function to your space.

It’s sturdy, saves room, and makes the most of what you already have. Compared to a portable setup, wall-mounted hoops look better and last longer.

In this step-by-step guide, we’ll walk you through everything you need to plan, install, and maintain your hoop properly while making your garage even more useful in the process.

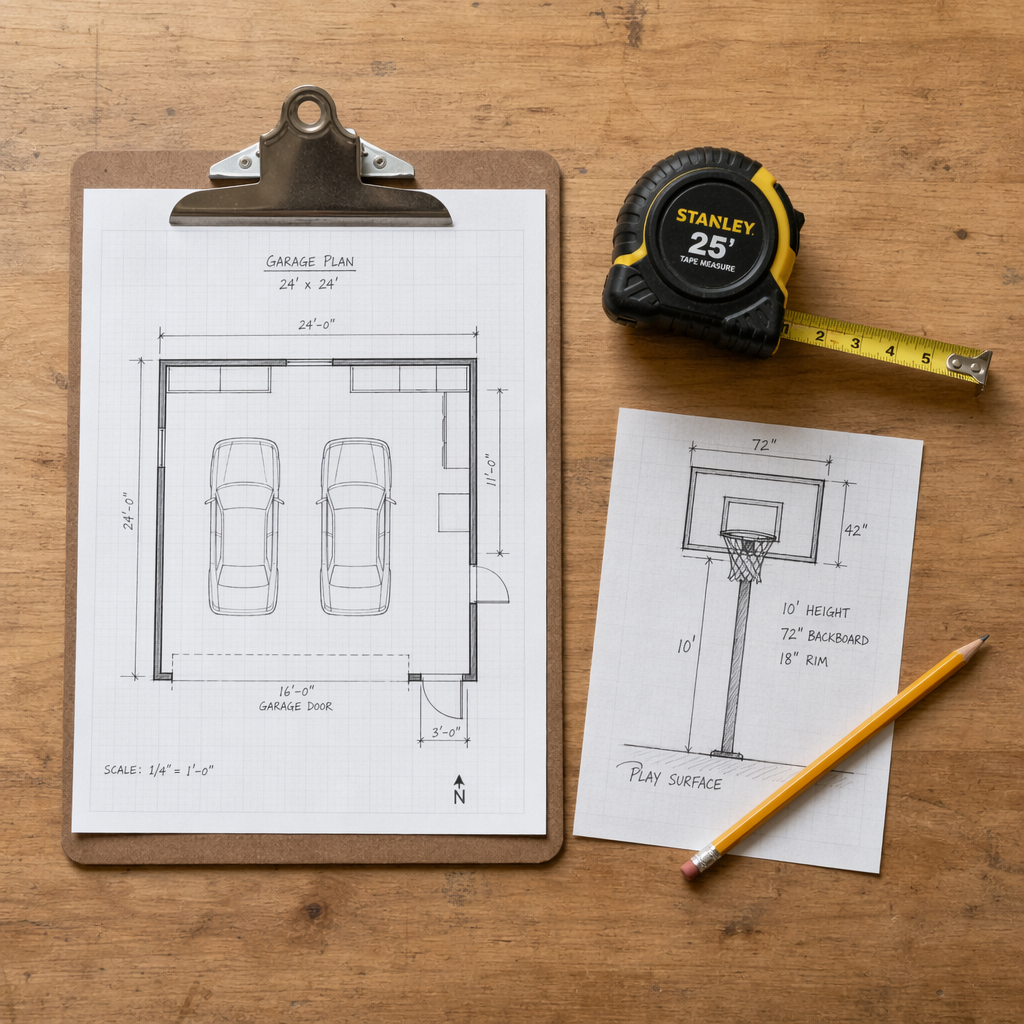

How to Plan Your Garage Hoop Project

Before grabbing your drill and ladder, let’s slow down and start with a plan. A few smart decisions up front will save you a lot of trouble later.

Choose the Right Hoop

If you’re mounting a hoop on your garage, a wall-mount system is the way to go. These are designed to attach directly to the structure of your garage, offering better stability than a portable hoop.

But before you buy, there are a few things you’ll want to think through.

Backboard Size

Backboards come in a range of sizes, usually from 44 to 72 inches wide. A 54-inch or 60-inch board is a solid middle ground…big enough for realistic bank shots and layups, but not so large that it overwhelms your garage.

Backboard Material

There are three main types of backboard material:

Polycarbonate is durable and impact-resistant, but it tends to scratch and can get cloudy over time.

Acrylic looks clearer and gives a slightly better bounce, though it’s more prone to cracking.

Tempered glass is the top choice for serious players. It’s heavier and gives a true rebound feel, just like you’d find in a gym.

Rim Style

Rims come in two basic types:

A standard fixed rim is fine for casual shooting.

A breakaway rim includes a spring mechanism, which adds a bit of give when you dunk. It’s more forgiving on your wrists and your mounting hardware.

Height Adjustability

Some wall-mounted hoops are fixed at regulation height (10 feet), while others allow you to adjust. If you’ve got younger players or want the flexibility to lower the rim, look for a height-adjustable option.

Just keep in mind that adjustable systems are usually a bit more expensive and might require more installation work.

Overhang Distance

One last thing to think about is overhang: the space between the wall and the backboard. You’ll want at least a couple of feet here so players have room to shoot without hitting the wall.

More overhang generally makes for better play, but it also means more weight pulling on your garage wall, so make sure your mounting surface can handle it.

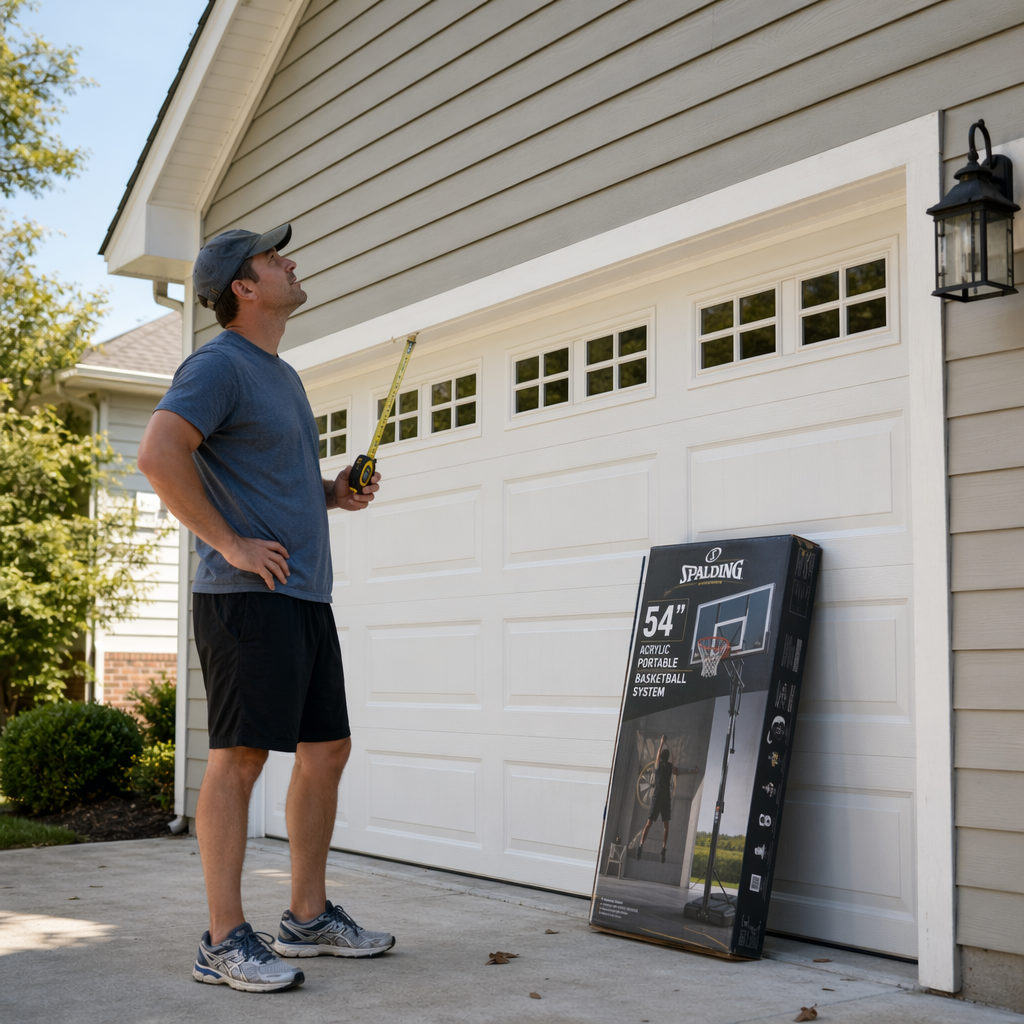

Select the Perfect Location

Choosing the right spot on your garage wall makes a big difference for both safety and playability. Before you start drilling, take a few things into account.

Common Mounting Spots

Most people mount their hoop above the garage door as it’s convenient and gives good shooting distance. If that’s not ideal, consider a solid side wall with enough space to play.

Watch for Obstacles

Stay away from windows, vents, lights, or anything that could break or block play. Also, make sure there are no overhead wires above the court area.

Check the Wall Structure

You must mount directly into the wall studs. Don’t rely on siding or veneer alone. Use a stud finder to locate solid support. If your chosen area lacks studs, either change the location or reinforce it properly.

Make Sure There’s Enough Space to Play

Aim for:

• 10 to 15 feet of clear driveway space behind the hoop
• 5 to 10 feet on either side

A double driveway usually works well for this. If you’re not sure about your garage size and layout options, it helps to measure carefully before committing to a location.

Level Surface and Clearance

Make sure your driveway is flat and smooth. Also, if you’re mounting above the garage door, measure the clearance when it’s open. The hoop shouldn’t interfere with or vibrate when the door moves.

Minimize Sun Glare

Try to avoid placing the hoop where the sun will be in your eyes during typical play hours. A small adjustment in location can make playing much more enjoyable.

Safety Considerations & Regulations

When mounting a hoop to your garage, only anchor it into the wall studs. Siding or veneer alone won’t hold the weight and could lead to damage or injury if the hoop pulls loose.

Before drilling, check for wiring or plumbing behind the wall. Use a stud finder with AC detection, or drill a small test hole to be safe.

Also, double-check with your HOA or local rules. Some areas limit what you can install on your home’s exterior. A quick look at the guidelines can help you avoid issues down the road.

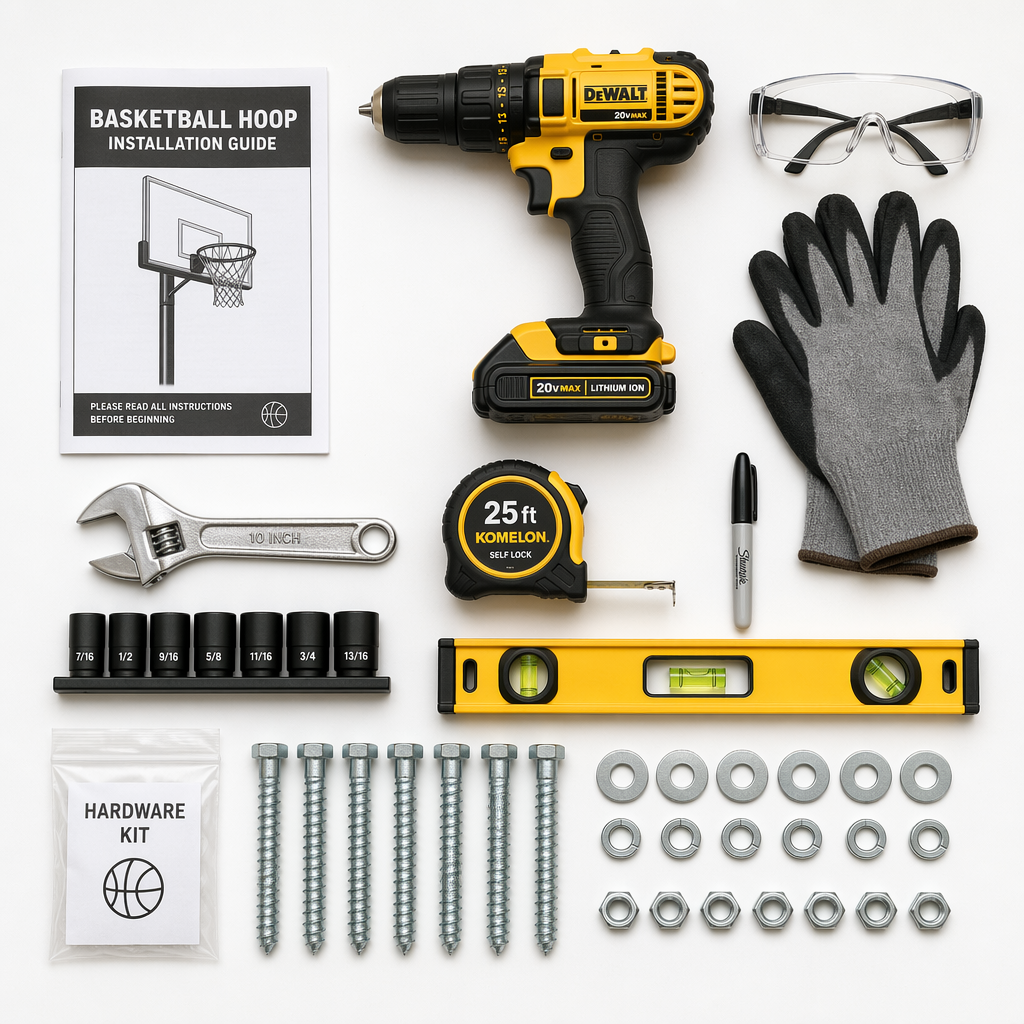

Essential Tools & Materials

Here’s what you’ll need on hand to do the job right:

• Basketball Hoop Kit (with all mounting hardware)
• Power Drill (with appropriate drill bits for pilot holes and lag bolts)
• Stud Finder (electronic, AC detection helps)
• 24″+ Level
• Tape Measure
• Socket Wrench Set or Adjustable Wrench
• Pencil or Marker
• Solid Ladder
• Safety Glasses
• Work Gloves
• A Friend or Helper (don’t try to lift the backboard solo)
• Manufacturer’s Manual (keep it close)

How to Mount a Basketball Hoop on Your Garage: Step-by-Step Guide

Once you’ve gathered your tools, chosen your spot, and planned things out, it’s time to mount your hoop.

Step 1: Unpack and Inventory

Start by opening up the box and laying everything out. Match each part to the list in the manual to make sure nothing’s missing or damaged. If anything looks bent, cracked, or off, don’t skip over it.

Contact the manufacturer if needed…you’ll want everything in working order before you start.

Step 2: Locate and Mark Wall Studs

Use a stud finder to find the centerlines of at least two wall studs (three is better if your bracket is wide enough). Once located, mark their center points clearly on the wall.

Quick Tip: Use a small drill bit or nail to poke into the wall inside your bracket’s coverage area to double-check the stud location. If you miss the stud, you’ll know before you commit to full drilling.

Step 3: Determine the Mounting Height

A regulation hoop stands 10 feet from the ground to the top of the rim. Your bracket won’t sit at exactly 10 feet. Check your manual to see where it needs to go so the rim ends up at the right height. Mark that height clearly.

Step 4: Prepare the Mounting Surface

If you’re mounting over siding, drywall, or anything that’s not totally flat or solid, it’s smart to add a mounting board first. Use something like a 2×6 pressure-treated wood board, and cut it to span across your marked studs.

• Use a level to line the board up straight.
• Secure it tightly to the studs using 3-inch screws (aim for at least 1.5 inches of penetration into each stud).

This board will help distribute the weight more evenly and give your bracket a stronger hold.

Step 5: Position and Mark the Mounting Bracket

Grab your mounting bracket and hold it up to the wall or the board where you marked your height.

• Center it on the studs or board.
• Use a level to make sure it’s perfectly straight.
• Mark the holes where you’ll drill for your lag bolts.

Don’t eyeball this…small misalignments can throw off the whole setup later.

Step 6: Drill Pilot Holes

Using a bit slightly smaller than the solid core (not the threads) of your lag bolts, drill straight pilot holes into the wall studs or board at each marked spot. Keep the drill perpendicular to the surface so the bolts seat evenly.

Step 7: Secure the Mounting Bracket

Place the bracket over the pilot holes. Slide washers onto the lag bolts (if required by your manual), then drive them into the wall studs using a socket wrench.

Work your way around the bolts evenly, tightening one a bit at a time rather than cranking down on one before the others. That helps the bracket stay level and prevents cracking or stripping the wood.

Step 8: Assemble the Backboard, Rim, and Net

Turn to your backboard assembly.

• Attach the rim (and any arms or brackets) to the backboard per the instructions.
• If the kit came with padding for the backboard, install that, too.
• Attach the net to the rim while everything’s still on the ground. It’s much easier right now than doing it 10 feet up.

Step 9: Mount the Backboard Assembly

With a helper, carefully lift the assembled backboard and rim into place. Line it up with the mounting bracket according to your hoop’s instructions.

Insert all required bolts and nuts, and tighten everything securely.

Once it’s in place, use your level again to make sure the backboard is perfectly straight both vertically and side to side. Make small adjustments before doing the final tightening.

Step 10: Final Check and Clean Up

Double-check every bolt and connection. Gently push and pull on the hoop to test how stable it feels. If anything shifts, make adjustments right away.

Clean up your tools, leftover parts, and packaging. You’re officially ready to shoot some hoops.

Post-Installation Considerations

Once the hoop is mounted and secure, there are a few final steps to take that’ll keep it in great shape and ready for play.

Test Before You Play

Before the first layup or jump shot, take a minute to check the hoop’s stability. Gently pull and push on the rim to make sure there’s no wobble or movement. If anything shifts or creaks, go back and double-check your bolts and bracket alignment.

Routine Maintenance

Over time, even the best installations loosen up. Especially during heavy use, vibrations from play can cause bolts to shift. It’s a good idea to inspect your hardware once a month or at the start and end of each season.

Tighten any bolts that feel loose and check the rim, bracket, and backboard for signs of rust, wear, or cracking.

Wipe down the backboard regularly using a soft cloth and follow the care instructions in your manual. If your net starts to fray or sag, go ahead and swap it out…it’s a quick fix that keeps things looking sharp.

Protect the Hardware

To help fight off rust and moisture, you can seal around the lag bolts with a small bead of waterproof caulk, just enough to keep water from seeping in where the bolts meet the bracket or mounting board.

It’s a small step that goes a long way in extending the life of your setup.

Optional Additions

Want to make your driveway court even better? A few simple upgrades can go a long way:

• Paint or tape court markings for free-throw lines and a key.
• Install outdoor lights if you plan to play after sunset.
• Add a ball rack or wall-mounted storage in the garage to keep things tidy.

You might also consider turning your garage into more of a recreational space with other upgrades that complement your new basketball setup.

Conclusion

And there you have it…a fully mounted, ready-to-use basketball hoop right on your garage.

It’s more than just a hoop…it’s a weekend workout, it’s a place for your kids to hang out, it adds a little bit of magic to an otherwise quiet driveway.

And if you’ve followed this guide carefully, you have a strong, safe setup that’ll hold up through years of play.

Grab a ball, shoot your shot, and enjoy the best kind of garage upgrade there is.

Frequently Asked Questions

What size backboard should I choose for a garage-mounted basketball hoop?

A 54-inch or 60-inch backboard is ideal for most garage installations. It’s large enough for realistic bank shots and layups but won’t overwhelm your space. If you have serious players or plenty of room, a 72-inch board offers the most authentic experience.

Can I mount a basketball hoop directly to garage siding?

No, you should never mount directly to siding alone. Always anchor into wall studs or install a pressure-treated mounting board that’s secured to the studs first. Siding won’t support the weight and stress of regular play, which can lead to damage or injury.

How much clearance do I need around my basketball hoop?

Plan for 10 to 15 feet of clear space behind the hoop and 5 to 10 feet on either side. You’ll also want to ensure the hoop doesn’t interfere with your garage door when it opens and closes. A
